These remarkable materials are known as shape memory alloys (SMAs). Unlike conventional metals, they can recover substantial deformation through a reversible transformation between two crystal structures: high-temperature austenite and low-temperature martensite. This transformation gives rise to two characteristic behaviors - shape memory and superelasticity.

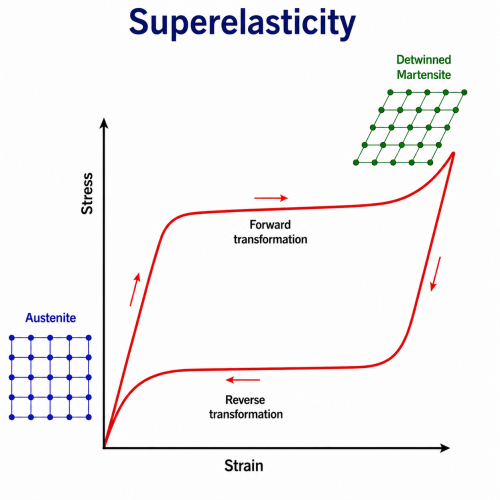

With the shape memory effect, a material deformed in its martensitic state can recover its original shape when heated. With superelasticity, large deformation can be recovered immediately after the applied load is removed, without the need for heating. These unusual properties have transformed shape memory alloys from scientific curiosities into important engineering materials.
Nitinol, the Benchmark: Why Look Beyond it?
Among shape memory alloys, Nitinol (Ni-Ti) has become the benchmark.
Its combination of shape memory behavior, superelasticity, corrosion resistance and excellent fatigue performance has enabled applications ranging from medical stents and guidewires to aerospace actuators and industrial components. Its ability to recover strains of around 6-8% without permanent deformation has enabled designs that would be difficult to achieve using conventional engineering materials.
So why look beyond Nitinol?
Not because Nitinol has reached the end of its potential, but because emerging technologies are creating demand for new ways of controlling the response of smart materials.
Conventional shape memory actuation is primarily driven by temperature, while superelastic behavior is activated mechanically. Introducing another stimulus - particularly a magnetic field - opens new possibilities for how shape memory materials can be controlled and applied.
This is where ferromagnetic Heusler alloys become particularly interesting.
Adding Magnetism to Shape Memory
Heusler alloys are a family of intermetallic materials with interesting structural and magnetic properties. Some Heusler alloys combine a reversible martensitic transformation with ferromagnetism, giving rise to ferromagnetic shape memory alloys (FSMAs).
Ni-Fe-Ga is one such system.
Like Nitinol, Ni-Fe-Ga can exhibit shape memory behavior and superelasticity. Unlike Nitinol, however, it is also ferromagnetic.
This means that its mechanical and magnetic behaviors can become coupled.

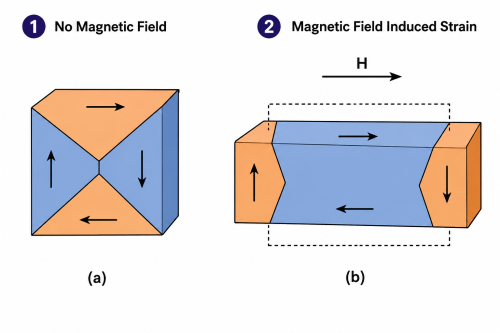

In the martensitic state, Ni-Fe-Ga can contain differently oriented variants separated by twin boundaries. When an external magnetic field is applied, variants that are favorably aligned with the field can become energetically preferred. Under suitable conditions, this can drive twin-boundary motion and variant reorientation, producing a measurable change in shape.
This phenomenon is known as Magnetic Field-Induced Strain (MFIS) and introduces an important additional functionality: the possibility of generating mechanical deformation in response to a magnetic field.
In simple terms, Nitinol demonstrated how effectively metals can remember and recover their shape. Ferromagnetic Heusler alloys add the possibility of controlling mechanical response through magnetism.
Why Ni-Fe-Ga?
Among ferromagnetic shape memory alloys, Ni-Fe-Ga offers an attractive combination of shape memory behavior and magnetic functionality. Its manganese-free composition can also offer advantages in compositional control compared with Mn-containing Heusler systems such as Ni-Mn-Ga.
Another particularly interesting feature is its compatibility with miniaturized geometries. Ni-Fe-Ga can be produced as glass-coated microwires, creating highly compact architectures suitable for small-scale actuation applications.
This combination of shape memory behavior, magnetic functionality and compatibility with microwire geometries makes Ni-Fe-Ga an exciting material for the development of next-generation actuators.
Beyond Nitinol
The significance of Heusler shape memory alloys goes beyond simply outperforming Nitinol, they expand the scope of what shape memory materials can do.
Nitinol remains an outstanding material for conventional shape memory and superelastic applications. Ferromagnetic Heusler alloys such as Ni-Fe-Ga introduce another dimension by combining structural transformation with magnetic functionality, creating new possibilities for controlling mechanical response.
Importantly, the laboratory testing at RVmagnetics and RVactuators has demonstrated larger actuation strokes in our Ni-Fe-Ga materials than in Nitinol under the investigated conditions. This larger displacement, combined with magnetic functionality and the possibility of producing the material as microwires, opens exciting opportunities for compact actuators, micro-actuation, precision positioning and other smart-material systems.
There remains scope to further improve material performance through continued optimization of composition, processing and microstructure. Nevertheless, the results already demonstrate the exciting potential of Ni-Fe-Ga for future actuation technologies.
As engineering moves toward smaller, smarter and more adaptive systems, Heusler alloys offer an opportunity to take shape memory technology beyond conventional thermal actuation.
Not simply materials that remember their shape, but materials whose movement can be controlled in new ways.
